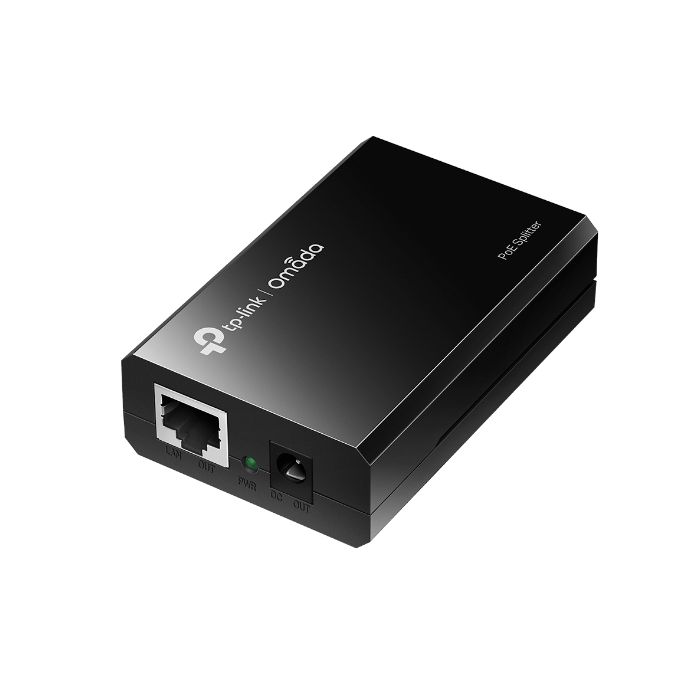

POE10R(UN) V6.0

Omada PoE Splitter Adapter PORT: 1× Gigabit PoE Port, 1× Gigabit Non-PoE Port SPEC: 802.3af Compliant, Data and Power Carried over The Same Cable Up to 100 Meters, 12V/9V/5V Power Output, Plastic Case, Pocket Size
Hersteller SKU
POE10R
ADN-Nummer
TPL00000189

Produktinformationen

  • IEEE 802.3af compliant
  • Selectable power output
  • Gigabit speed support
  • Plug-and-Play, no configuration required
Schnittstelle• 2× 10/100/1000Mbps RJ45 Port
• Auto Negotiation/Auto MDI/MDIX
• 1× Power Output Port
Kabel• 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
Spannungsversorgung12VDC 1A, 9VDC 1A, 5VDC 2A
Grundfunktion• Compatible With IEEE 802.3af Compliant PSEs
• Delivers Power Up To 100 Meters
• Optional 12VDC, 9VDC or 5VDC Power Output
LEDPWR
Abmessungen (B*T*H)3.2*2.1*0.9 in.(80.8*54*24 mm)
