S5500-4XHPP2XF

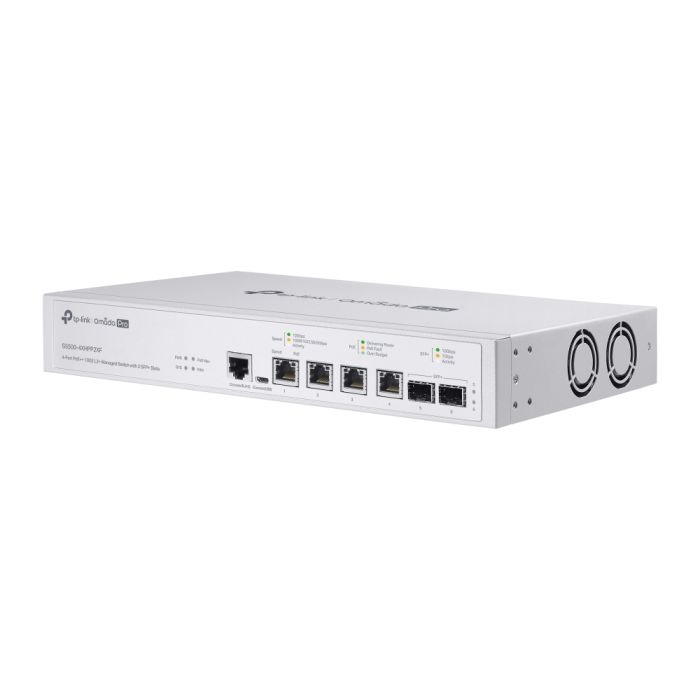

Omada Pro 4-Port PoE++ 10GE L2+ Managed Switch with 2 SFP+ Slots PORT: 4× 10G PoE++ Ports, 2× 10G SFP+ Slots, RJ45/Micro-USB Console Port SPEC: 802.3bt/at/af, 200 W PoE Power, 1U 13-inch Rack-mountable Steel Case FEATURE: Integration with Omada Pro SDN Controller,Static Routing, OAM, DDM, sFlow, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6
Hersteller SKU
S5500-4XHPP2XF
ADN-Nummer
TPL00000146

Produktinformationen

Omada Pro S5500‑4XHPP2XF ermöglicht den Aufbau und die Erweiterung eines ultraschnellen Netzwerks. Der Switch ist ein vollständig Enterprise‑tauglicher Managed‑Switch mit 4× 10‑Gbps‑PoE++‑Ports und 2× 10G‑SFP+‑Ports. Mit einem PoE‑Budget von 200 W können angeschlossene Geräte flexibel mit Strom versorgt werden – ideal für Access Points, IP‑Kameras oder andere PoE‑Endgeräte, ohne zusätzliche Steckdosen einplanen zu müssen.

Dank PoE‑Unterstützung, leistungsstarkem Static Routing, Enterprise‑QoS, erweiterten Sicherheitsfunktionen, einer breiten Auswahl an Layer‑2‑Managementoptionen sowie der Integration in Omada Pro SDN ist der S5500‑4XHPP2XF eine hervorragende Wahl für Unternehmen, MDUs, Hotels und ISPs.


  • 4× 10G‑PoE++‑Ports mit bis zu 60 W PoE‑Leistung pro Port**

  • 2× 10G‑SFP+‑Slots

  • 200 W PoE‑Budget*

  • Ideal für die Zugriffsebene in Unternehmensnetzwerken

  • Zentrale Cloud‑Verwaltung über Web oder die Omada‑App†

  • Standalone‑Management über Web, CLI, SNMP und RMON

  • Static Routing & ERPS (Ethernet Ring Protection Switching)

  • VLAN, ACL, QoS, IGMP Snooping, OAM, DDM


Schnittstelle• 4× 100/1000/2500/5000/10000 Mbps PoE++ RJ45 Ports
• 2× 10G SFP+ Slots
• 1× RJ45 Console Port
• 1× Micro-USB Console Port
Anzahl Lüfter2
Physischer Diebstahlschutz√
Spannungsversorgung100-240 V AC~50/60 Hz
PoE-Ports• Standard: 802.3af/at/bt (type 3) compliant**
• PoE+ Ports: 4 Ports, up to 60 W per port
• Power Budget: 200 W*
Abmessungen (B*T*H)11.6×7.1×1.7 in (294×180×44 mm)
Montage• Rack Mountable
• Desktop
Maximale Leistungsaufnahme244.90 W (110V/60Hz) (with 200 W PD connected)
Maximale Wärmeabgabe835.67 BTU/h (110 V/60 Hz) (with 200 W PD connected)
