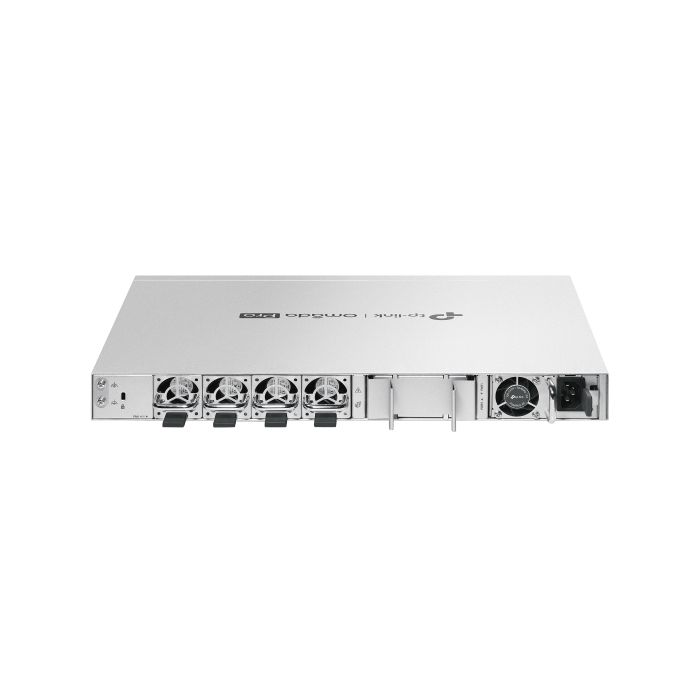

S6500-24GP4XF
Omada Pro 24‑Port‑Gigabit stapelbarer L3‑Managed‑PoE+‑Switch mit 4× 10G‑Slots
24× Gigabit‑PoE+‑RJ45‑Ports und 4× 10‑Gbps‑SFP+‑Steckplätze
Bis zu 720 W gesamtes PoE‑Budget*
Omada Pro S6500‑24GP4XF ist ein leistungsstarker, L3‑verwalteter PoE+‑Switch für die Zugriffsebene. Er bietet L3‑Routing, schnelle kabelgebundene 10‑Gbps‑Geschwindigkeiten, Stacking‑Optionen und redundante Netzteilmodule. Er verfügt über ein PoE‑Budget von 720 W*, 24× Gigabit‑RJ45‑PoE+‑Ports, 4× 10‑Gbps‑SFP+‑Steckplätze, physische Stacking‑Fähigkeit sowie zentrale Verwaltung. Mit starker integrierter Sicherheit, einfacher O&M und umfangreichen Managementfunktionen bietet der S6500‑24GP4XF eine zuverlässige Netzwerklösung für KMUs, Unternehmen und ISPs.
24× Gigabit‑PoE+‑RJ45‑Ports und 4× 10‑Gbps‑SFP+‑Steckplätze
Bis zu 720 W gesamtes PoE‑Budget*
Physisches Stacking für integrierte Redundanz und hohe Leistung
L3‑Funktionen: OSPF, BGP, IS‑IS, VRRP, PIM‑SM/PIM‑DM/PIM‑SSM, ECMP, PBR
Sicherheitsstrategien: MACsec, Secure Boot, RADSEC, IMPB, SFTP, 802.1X
Hohe Verfügbarkeit mit zwei vor Ort austauschbaren Netzteilen**, VRRP, ERPS und BFD
Einfache O&M: NETCONF, Konfigurations‑Rollback, Hot Patching und RSPAN
Zentrale Cloud‑Verwaltung über Weboberfläche oder die Omada‑App
| Schnittstelle | • 24× 10/100/1000 Mbps PoE+ RJ45 Ports • 4× 1/10Gbps SFP+ Slots*** • 2× USB 2.0 Ports • 1× RJ45 Console Port • 1× USB Type-C Console Port • 1× RJ45 Management Port |
|---|---|
| Anzahl Lüfter | Four Field-replaceable and Hot-swappable Fans |
| Spannungsversorgung | Two Field-replaceable and Hot-swappable Power Supply Modules**(100–240 VAC, 50/60 Hz) **Shipping with one PSM500-AC module by default, and another field-replaceable redundant power supply requires purchasing separately. |
| PoE-Ports | • Standard: 802.3at/af compliant • PoE+ Ports: 24 Ports, up to 30 W per port • PoE Power Budget: up to 720 W* *The total PoE budget varies with the power supply modules. |
| Abmessungen (B*T*H) | 17.3 × 16.5 × 1.7 in (440 × 420 × 44 mm) |
| Montage | Rackmountable |
| Maximale Leistungsaufnahme | • 32.5 W (110 V/60 Hz) (With no PD connected) • 916.6 W (110 V/60 Hz) (With 720W PD connected and powered by 2× PSM500-AC) |
| Maximale Wärmeabgabe | • 110.82 BTU/hr (110 V/60 Hz) (With no PD connected) • 3,125.61 BTU/hr (110 V/60 Hz) (With 720W PD connected and powered by 2× PSM500-AC) |
